China Post Technology (CPTE) - A Leading Intralogistics Solution Provider

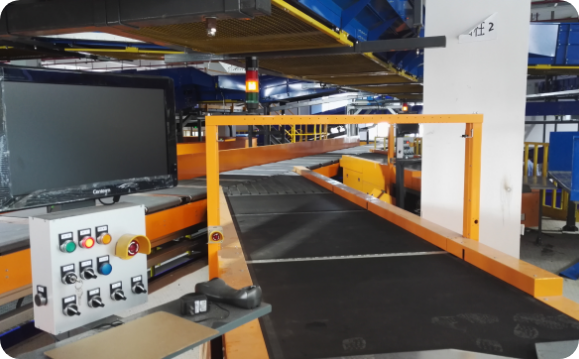

Loop Cross Belt Sorter

Applicable to multi category logistics processing center, single/double/three/four layer loop cross belt sorters have been formed, suitable for parcel sorting of large and small pieces with different specifications.

Product Important Indicators and Functions

With the functions of double-end supply, “two-to-one”, flats induction, non-pole speed regulation, non-pole speed regulation, multi-language recognition, multi-face scanning, online video complement code, online automatic deviation correction, remote hier

Single layer small item sorter

Maximum operating speed of the main line：

3m/s

Maximum parcel weight：

8kg

Sorting efficiency：

Max 20000 pieces/h

Maximum parcel size：

465*380*250mm

Double layer small item sorter

Maximum operating speed of the main line：

3m/s

Maximum parcel weight：

8kg

Sorting efficiency：

Max 40000 pieces/h

Maximum parcel size：

465*380*250mm

Three layer small item sorter

Sorting efficiency：

Max 60000 pieces/h

Maximum parcel weight：

8kg

Maximum parcel size：

465*380*250mm

Four layer small item sorter

Sorting efficiency：

Max 8万件/h

Maximum parcel weight：

8kg

Maximum parcel size：

465*380*250mm

Single layer bulk sorter

Sorting efficiency：

在分拣机主线速度为A档2.5m/s的前提下，单区效率不小于1万件/小时；
格口不复用、捷近线不启用、双端供件，效率不小于1.3万件/小时。

Maximum parcel weight：

50kg

Maximum parcel size：

1000*700*150mm

Double layer bulk sorter

Sorting efficiency：

在分拣机主线速度为A档2.5m/s的前提下，单层单区效率不小于1万件/小时；格口复用、双端供件，双层效率效率不小于4万件/小时。

Maximum parcel weight：

50kg

Maximum parcel size：

1000*700*150mm

Slide to see more

Single layer small item sorter

Double layer small item sorter

Three layer small item sorter

Four layer small item sorter

Single layer bulk sorter

Double layer bulk sorter

Application Scenario

Suitable for large express and warehouse processing centers. Customized design and development can be carried out based on sorting scale, chute direction, package size, and other requirements, with multifunctional stacking to achieve sorting and processin
