Automatic Identification System for Email Types

The automatic recognition system for email types is equipped with a high-precision, wide field of view, and super deep field 3D camera to obtain email images. It uses a combination of 2D+3D multi-layer neural network deep learning technology to accurately distinguish email types and identify email size, shape, material, and type information.

Product Important Indicators and Functions

Scene type: high-speed movement, irregular objects, complex packaging, uneven surface, colored objects (need to pass at a constant speed)

Single level

Identification efficiency：

Standard board：≥3600 pieces/hour；
Enhanced version：≥ 10000 pieces/hour

Transmission belt speed：

standard board< 1.6m/s，mail spacing greater than 400mm；
Enhanced version：< 2.2m/s，with email spacing greater than400mm

Mail size：

Small item：100*100*5-400*400*400mm；
Large items：150*150*20-1500*800*700

Three indicators

Identification efficiency：

≥ 3600 pieces/hour;

Mail size (small piece)：

100*100*5-400*400*400mm；

Mail size (large)：

150*150*20-1500*800*700

Slide to see more

Single level

Three indicators

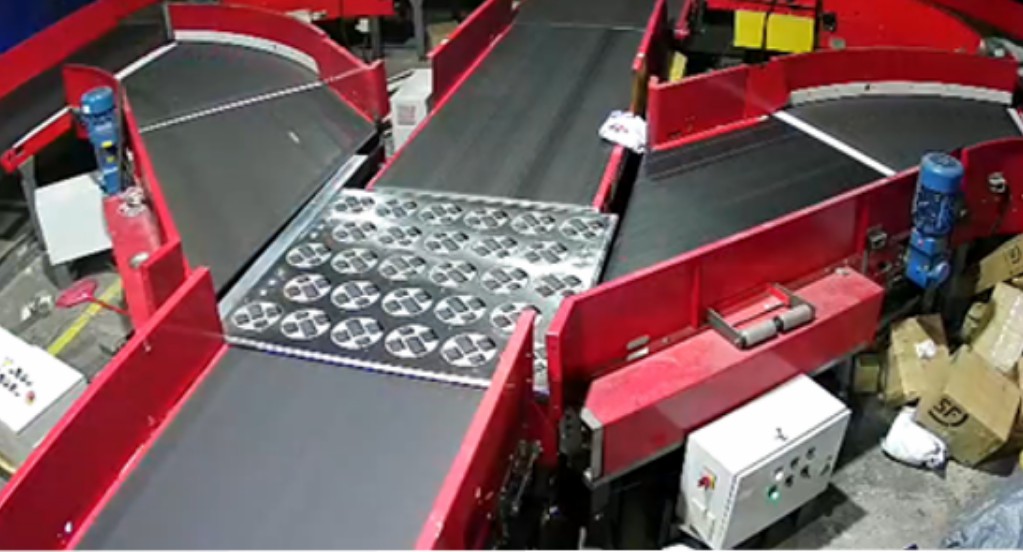

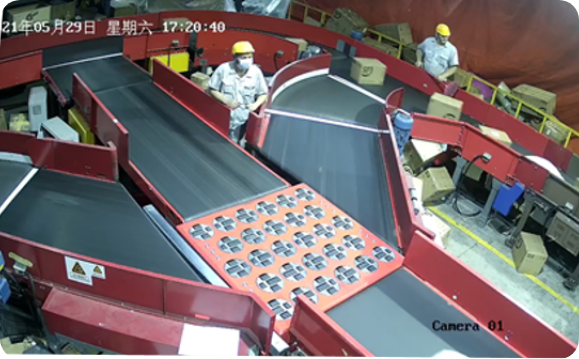

Application Scenario

可用于矩阵分拣等邮件粗分处理环节。
